Small home gym setup: three layouts for dumbbell training

The small home gym we would start with

For a small home gym, start with one adjustable dumbbell pair in its supplied cradles or case, a clear exercise area and a routine that works without a bench. That collection can support floor pressing, thigh-braced rows, squats or split squats, a Romanian deadlift and floor-based trunk work. A rack, bench and cardio machine are not prerequisites.

Our worked collection is the US REP QuickDraw 30lb pair. Add the REP AB-3100 only when you want flat-to-incline bench positions and can give it both a training position and a horizontal parking position. If the weights become too light before you need those positions, expand the pair first. Keep suitable weights you already own instead of replacing them to match the example.

The layouts below are for one person training at a time. Choose the two-day beginner routine while learning the movements; the three-day dumbbell programme is for someone already comfortable with them. Both use the floor-based first phase without a bench.

Once the movements are familiar and four days fit your week, the upper/lower muscle-building routine uses the same floor-based equipment while adding weekly work.

Buy a complete first phase, not half a larger gym

The required purchase in this US example is one QuickDraw 30lb pair, including its cradles, at US$335.99. Each dumbbell spans 5–30lb. That is a complete equipment basket for the floor-based routine when the settings suit your exercises. Keep an existing suitable mat if you like using it; there is no compulsory stand or new floor covering in this basket.

The AB-3100 costs US$269.99, making US$605.98 with the pair. It adds flat-to-incline positions, not additional dumbbell resistance. Its selected configuration is offered on preorder, so start on the floor rather than making training depend on its arrival. The model is not designed for upright storage.

These are equipment subtotals. REP advertises free shipping subject to exclusions including Alaska and Hawaii, and calculates sales tax at checkout. Add any charge for getting the shipment into the actual room. A positive balance below your spending cap must cover those costs before it becomes upgrade money.

Select the QuickDraw 30lb pair

Check AB-3100 positions and preorder timing

Lower-cost and local alternatives to the worked pair

For the smallest US purchase, omit the optional bench: US$335.99 rather than US$605.98, a US$269.99 reduction in equipment spending. You still have the complete floor phase. Keeping an appropriate owned pair costs less again; inspect its load settings and intended storage before buying another.

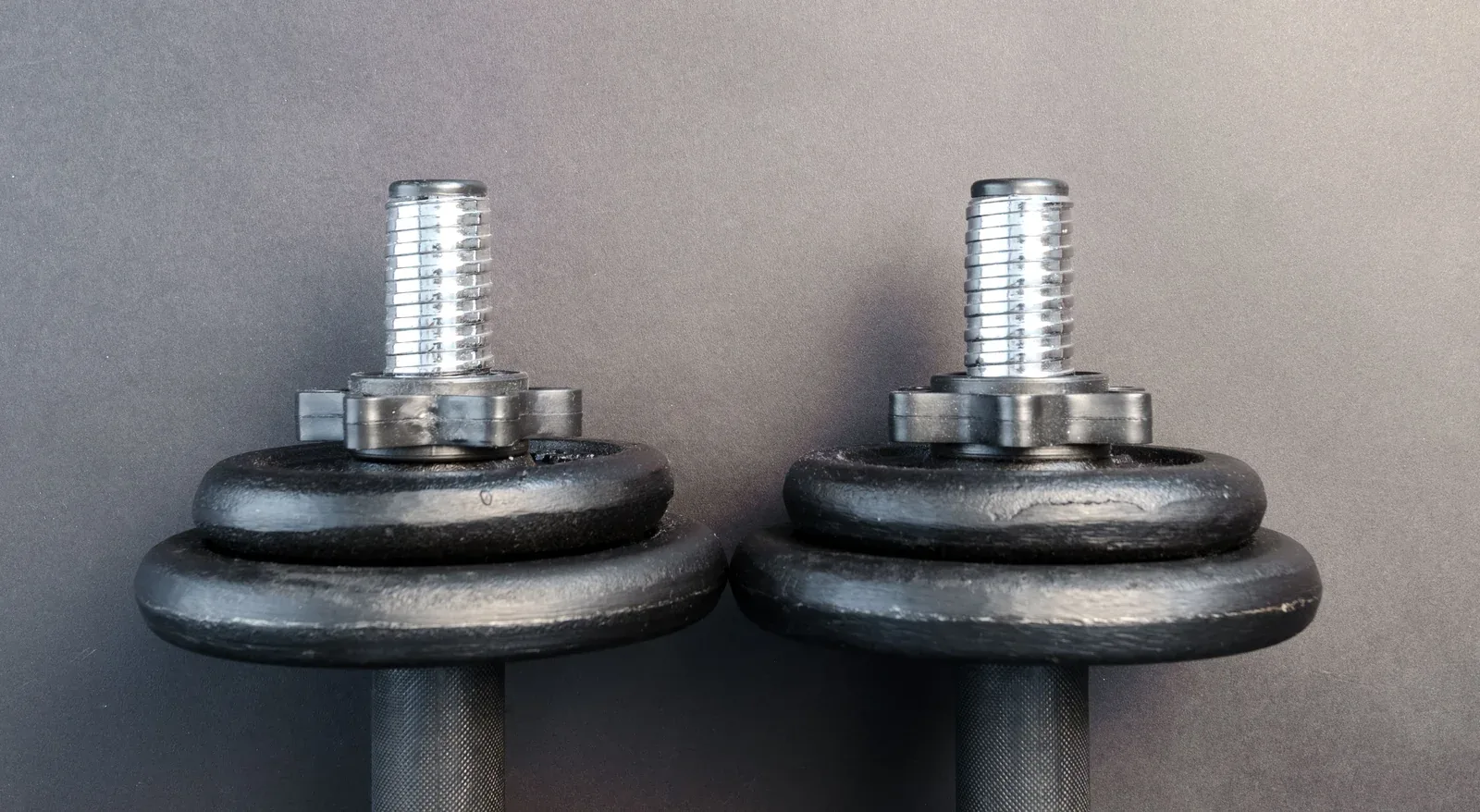

In the UK, Decathlon’s 20kg cast-iron dumbbells set, reference 8018574, is £49.99 at the standard listed price. It includes two threaded handles, four collars, plates and a case. The 20kg is the whole collection, giving two 10kg dumbbells when balanced, not 20kg per hand. Threaded changes take more handling than switches: give loose plates a set-down place while changing them and return them to the case afterwards. Keep its 28mm system distinct from Olympic plates.

In Australia, Fitness Hero’s 24kg adjustable pair, SKU OK1035E-24KG-PAIR, is A$350 including two caddies. Each dumbbell ranges from 2.5 to 24kg; the stand is separate. Its heavier settings include 18, 20.5, 22.5 and 24kg, so a higher maximum does not mean every jump is small. Lower the weights under control; the seller excludes dropping damage from its warranty.

Each local pair can be a complete floor collection if its loads suit the routine. Add the local delivery charge and any tax due; these are not converted or delivered prices. Use that product’s actual storage dimensions rather than copying the QuickDraw outlines below. For a broader comparison of budget branches, use the budget setup guide.

View the UK threaded kit

View the Australian 24kg pair

Draw the equipment before marking your movements

A QuickDraw cradle measures 20.6 × 8.45in, about 52.3 × 21.5cm. Tape two separate rectangles, including the unused plates in their cradles. Leave the hand access needed to select, lift and return each weight; the rectangle itself supplies none of that space.

The AB-3100 measures 50.5 × 23in, about 128.3 × 58.4cm, across its overall length and base width. Use the base, not just the narrow pad. In the examples it stays horizontal when parked. Do not plan to stand it on end to recover floor space.

Use one line for the equipment outline, another for the door swing and walking route, and removable marks for your feet, body and the furthest position reached by a hand holding a weight. Rehearse without load before ordering. Measure standing overhead reach against the lowest ceiling obstruction as well as measuring across the floor. A rectangle that fits on paper can still leave no way to set up the exercise.

Layout 1: a 2 × 3m shared room, without a bench

Example: draw a room 200cm across and 300cm deep, with the entrance at the front-left corner. On your sketch, left-to-right is x and front-to-back is y. This example uses an 80cm door hinged at that corner, opening inward against the left wall. Draw its actual swing first; reverse or relocate the arrangement if your doorway differs.

Park both QuickDraw cradles in the back-right corner, lengthways across the room, one behind the other. The front-left corners of their outlines sit at x=130cm, y=240cm and x=130cm, y=270cm. Each outline extends about 52.3cm rightwards and 21.5cm backwards. Approach the handles from the centre, not by stepping between a cradle and the wall.

Begin your floor-session rehearsal along the room’s long direction with your head towards the back wall. Mark where your body, elbows, feet and weights actually reach, including getting down and standing up. Try the squat and hinge facing the back wall, then rehearse the thigh-braced row on both sides. Keep the left-hand route from the entrance available throughout. If your press or row reaches into that route or the cradles, move the docking position and repeat; do not shorten the exercise to fit the drawing.

This is the first layout to try when the room must reset after every workout. It leaves out a bench altogether. In a 2m-wide room, a permanent stand or horizontal bench can consume the very area needed for the exercise, even though the shopping list still looks compact.

Layout 2: a 3 × 3m room that returns to open floor

Example: keep the same front-left door arrangement in a 300 × 300cm room. Put the cradles at x=230cm, y=240cm and x=230cm, y=270cm. Reserve the left edge as the entrance route. The added width separates the back-right docking position from the central exercise area.

If you already own the AB-3100, park it horizontally across the front-right part of the room: its front-left corner is x=120cm, y=10cm, with its long side running left-to-right. Its outline ends at about x=248.3cm and y=68.4cm. It is not in the door-swing square, and there is no need to turn it upright.

Use the central floor for the no-bench routine while the bench stays parked. Tape your own floor-press pickup and finish positions, then test the row, hinge and both split-squat stances. If your feet or the weights reach the parked bench, the parking position is wrong for that session. Remove the bench from the room or keep the floor-only collection rather than assuming another fold or turn will solve it.

This arrangement suits someone who wants occasional bench work but values a clear centre for most sessions. Do not buy a bench just to fill its parking rectangle; the floor programme remains useful without one.

Layout 3: the same 3 × 3m room in bench mode

Move the AB-3100 into a lengthways position with its front-left base corner at x=150cm, y=100cm. Its 58.4cm base width runs across the room and its 128.3cm length runs towards the back wall. The physical outline therefore ends at about x=208.4cm and y=228.3cm. Keep the cradles in the back-right positions from layout 2.

Place the head end towards the back wall and approach the foot end from the front. Before bringing weights to the bench, rehearse sitting down, setting up, pressing, finishing and standing. Mark the full hand-and-weight positions to either side; do not mistake the base-width measurement for pressing width. Test the incline setting you will actually use, including the changed head and hand height.

For floor exercises, return the bench to its horizontal parking position first. For supported work, rehearse each side separately: putting the cradles beside the supporting foot can create a collision even when both equipment outlines fit. Keep docking and body positions separate instead of squeezing a foot into the gap.

Choose this mode only when the rehearsal works with the entrance route intact. A bench that can physically sit in the centre is not automatically a useful purchase for the person training there.

Walk through the changeover, not just the finished layout

Enter with the door opening fully, approach the cradles from the central side and set the required loads. Leave unselected plates in their intended docks. Complete the floor-based routine using the demonstrated variations; return the dumbbells to the cradles before changing settings or rearranging the room.

If a separate planned session uses the bench, move the unloaded bench from its parking position before bringing the dumbbells into the training position. Establish the angle and body position, then bring the weights over. After the work, return the weights, move the bench back and check that the household can use the room normally.

Do not add a supported bench row or incline press to the linked floor routine merely because a bench arrived. Those are different variations with their own setup and progression. The small-room purchase decision is whether the positions are wanted and usable, not whether a new piece lets you rewrite every session.

The layout planner shows how to record these positions and keep the room sketch alongside your costs.

Three purchase phases, with a reason to stop

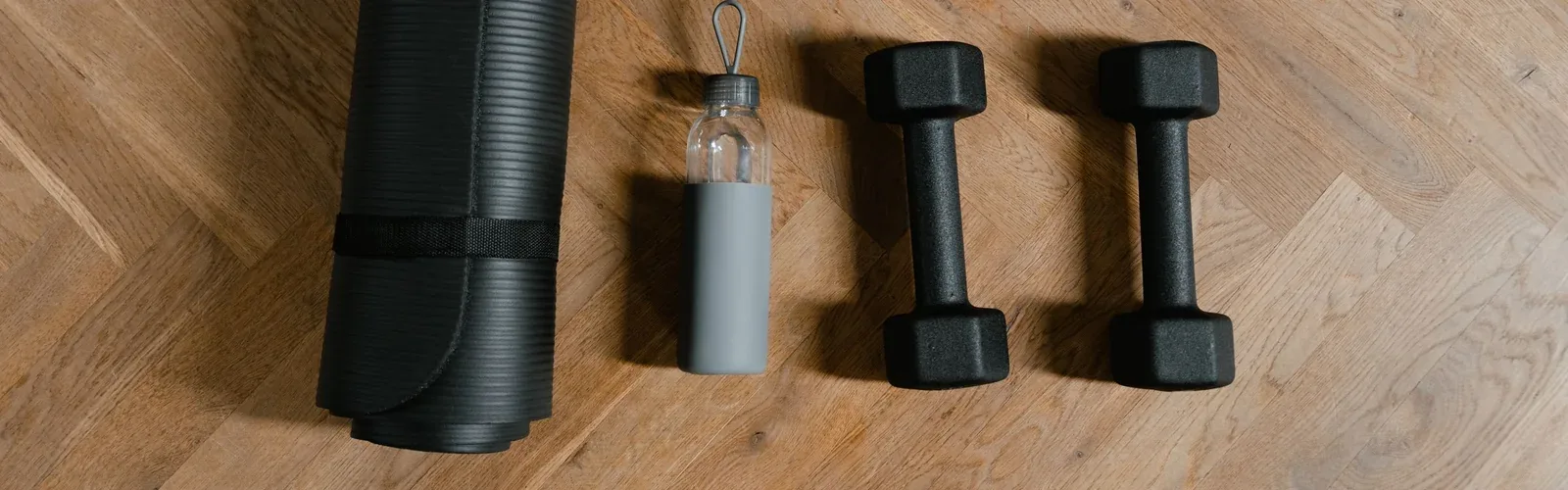

Phase one is a working gym, not a waiting room for a larger one. Use suitable weights, their intended storage and the floor-based routine. Keep owned bands or a mat if you use them, but neither needs replacing for the collection to match.

In phase two, fix the first real constraint. Buy the bench if a wanted position is missing and both bench modes fit. Buy matching weight expansion instead if the present load is too light. For QuickDraws, two 10lb add-ons take a 30lb pair to 40lb per hand; the system’s ceiling is 60lb per hand. The original cradles accommodate its documented expansion by removing their spacers, so the longer loaded dumbbells do not require a new docking rectangle.

Phase three is optional. Keep the pair and bench if they still support the training. Consider a cable station only for a wanted pulling direction or other missing function, after plotting the exact frame, cable path, user position and installation requirements. An empty corner is not a reason to put a frame there. A bike or treadmill belongs to a separate indoor-conditioning decision.

Check the QuickDraw add-on quantities

Leave out the kit that takes the room away

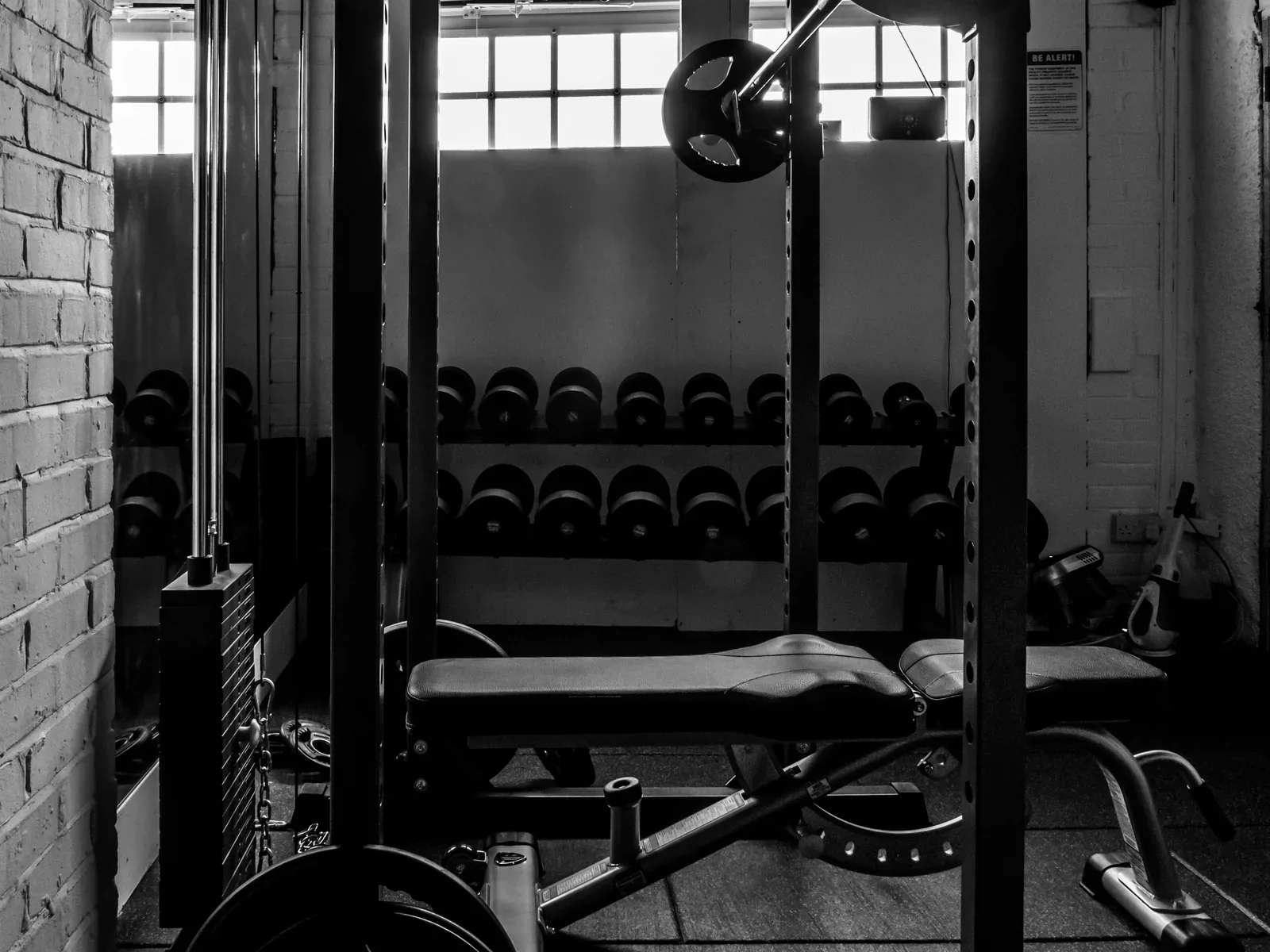

Keep a full rack, spare fixed pairs, decorative storage and cardio equipment out of this first collection. A rack needs its compatible bar, plates, collars, J-hooks and safeties, plus loading and use positions. It is not a space-saving replacement for two dumbbells just because its base fits against a wall.

Store weights in their intended docks or case rather than placing them on an ordinary household shelf. Use controlled set-downs instead of planning drops. If the room has a floor-capacity or anchoring question, resolve that specific question before installing equipment; a mat does not answer it.

For a shared garage or a genuinely barbell-focused next phase, use the garage guide. Otherwise, keep the small collection that you can get out, train with and put away without negotiating around another machine.

Choose adjustable dumbbells by load range and increments before spending on a higher maximum.
